227 : Obstacle Problem LVPP

(source code)

This example computes the solution $u$ of the nonlinear obstacle problem that seeks the minimiser of the energy functional

\[\begin{aligned} E(u) = \frac{1}{2} \int_\Omega \lvert \nabla u \rvert^2 dx - \int_\Omega f u dx \end{aligned}\]

with some right-hand side $f$ within the set of admissible functions that lie above an obstacle $\chi$

\[\begin{aligned} \mathcal{K} := \lbrace u \in H^1_0(\Omega) : u \geq \chi \rbrace. \end{aligned}\]

Opposite to Example225 the solution is computed by the latent variable proximal point (LVPP) method that solves the problem via a series of nonlinear mixed problems that guarantee the decay of the energy. Given $\alpha_k$ and initial guesses $u_0$ and $\psi_0$, the subproblem for $k \geq 1$ seeks a solution $u_{k} \in V := H^1_0(\Omega)$ and $\psi_{k} \in W := L^\infty(\Omega)$ such that

\[\begin{aligned} \alpha_k (\nabla u_k, \nabla v)_{L^2} + (\psi_k, v)_{L^2} & = (\alpha_k f + \psi_{k-1},v)_{L^2} && \text{for all } v \in V\\ (u_k, w)_{L^2} - (\chi + \exp(\psi_k), w)_{L^2} & = 0 && \text{for all } w \in W \end{aligned}\]

The parameter $\alpha_k$ is initialized with $\alpha_0 = 1$ and updated according to $\alpha_k = \min(\max(r^(q^k) - α), 10^3)$ with $r = q = 1.5$. The problem for each $k$ is solved by the Newton method. This implements Algorithm 3 in the reference below.

module Example227_ObstacleProblemLVPP

using ExtendableFEM
using ExtendableFEMBase
using ExtendableGrids
using LinearAlgebra
using Metis

# define obstacle
const b = 9 // 20
const d = sqrt(1 // 4 - b^2)
function χ(x)
    r = sqrt(x[1]^2 + x[2]^2)
    return r <= b ? sqrt(1 // 4 - r^2) : d + b^2 / d - b * r / d
end

# transformation of latent variable ψ to constrained variable u
function ∇R!(result, input, qpinfo)
    return result[1] = χ(qpinfo.x) + exp(input[1])
end

# boundary data for latent variable ψ (such that ̃u := χ + ∇R(ψ) satisfies Dirichlet boundary conditions)
function bnd_ψ!(result, qpinfo)
    return result[1] = log(-χ(qpinfo.x))
end

function main(;
        nrefs = 5,
        α0 = 1.0,
        order = 1,
        parallel = false,
        npart = 8,
        tol = 1.0e-12,
        Plotter = nothing,
        kwargs...
    )

    # choose initial mesh
    xgrid = uniform_refine(grid_unitsquare(Triangle2D; scale = (2, 2), shift = (-0.5, -0.5)), nrefs)
    if parallel
        xgrid = partition(xgrid, RecursiveMetisPartitioning(npart = npart))
    end

    # create finite element space
    FES = [FESpace{H1Pk{1, 2, order}}(xgrid), FESpace{H1Pk{1, 2, order}}(xgrid)]

    # init proximal parameter
    α = α0

    # prepare Laplacian and mass matrix
    L = FEMatrix(FES[1], FES[1])
    assemble!(L, BilinearOperator([grad(1)], [grad(1)]; parallel = parallel))
    function scaled_laplacian!(A, b, args; assemble_matrix = true, assemble_rhs = true, kwargs...)
        return if assemble_matrix
            # add Laplacian scaled by α
            ExtendableFEMBase.add!(A, L.entries; factor = α)
        end
    end
    M = FEMatrix(FES[1], FES[2])
    b = FEVector(FES[1])
    assemble!(M, BilinearOperator([id(1)], [id(1)]; parallel = parallel))

    # problem description
    PD = ProblemDescription()
    u = Unknown("u"; name = "solution")
    ψ = Unknown("ψ"; name = "latent variable")
    assign_unknown!(PD, u)
    assign_unknown!(PD, ψ)
    assign_operator!(PD, CallbackOperator(scaled_laplacian!, [u]; kwargs...))
    assign_operator!(PD, BilinearOperator([id(u)], [(id(ψ))]; transposed_copy = 1, store = true, parallel = parallel, kwargs...))
    assign_operator!(PD, NonlinearOperator(∇R!, [id(ψ)], [id(ψ)]; parallel = parallel, factor = -1, kwargs...))
    assign_operator!(PD, HomogeneousBoundaryData(u; regions = 1:4, kwargs...))
    assign_operator!(PD, InterpolateBoundaryData(ψ, bnd_ψ!; regions = 1:4, kwargs...))
    assign_operator!(PD, LinearOperator(b, [u]; kwargs...))

    # solve
    sol = FEVector(FES; tags = PD.unknowns)
    sol_prev = FEVector(FES; tags = PD.unknowns)
    SC = nothing
    r, q = 3 // 2, 3 // 2
    converged = false
    k = 0
    while !converged
        k += 1
        @info "Step $k: α = $(α)"

        # save previous solution and update right-hand side
        b.entries .= M.entries * view(sol[ψ])
        sol_prev.entries .= sol.entries

        # solve nonlinear problem
        sol, SC = solve(PD, FES, SC; init = sol, maxiterations = 20, verbosity = -1, timeroutputs = :hide, return_config = true, kwargs...)
        niterations = length(ExtendableFEM.residuals(SC))

        # compute distance
        dist = norm(view(sol[u]) .- view(sol_prev[u]))
        @info "dist = $dist, niterations = $(niterations - 1)"
        if dist < tol
            converged = true
        else ## increase proximal parameter
            α = min(max(r^(q^k) - α), 10^3)
        end
    end

    # postprocess latent variable v = ϕ + exp ψ = ∇R!(ψ)
    u2 = Unknown("̃u"; name = "solution 2")
    append!(sol, FES[1]; tag = u2)
    lazy_interpolate!(sol[u2], sol, [id(ψ)]; postprocess = ∇R!)

    # plot

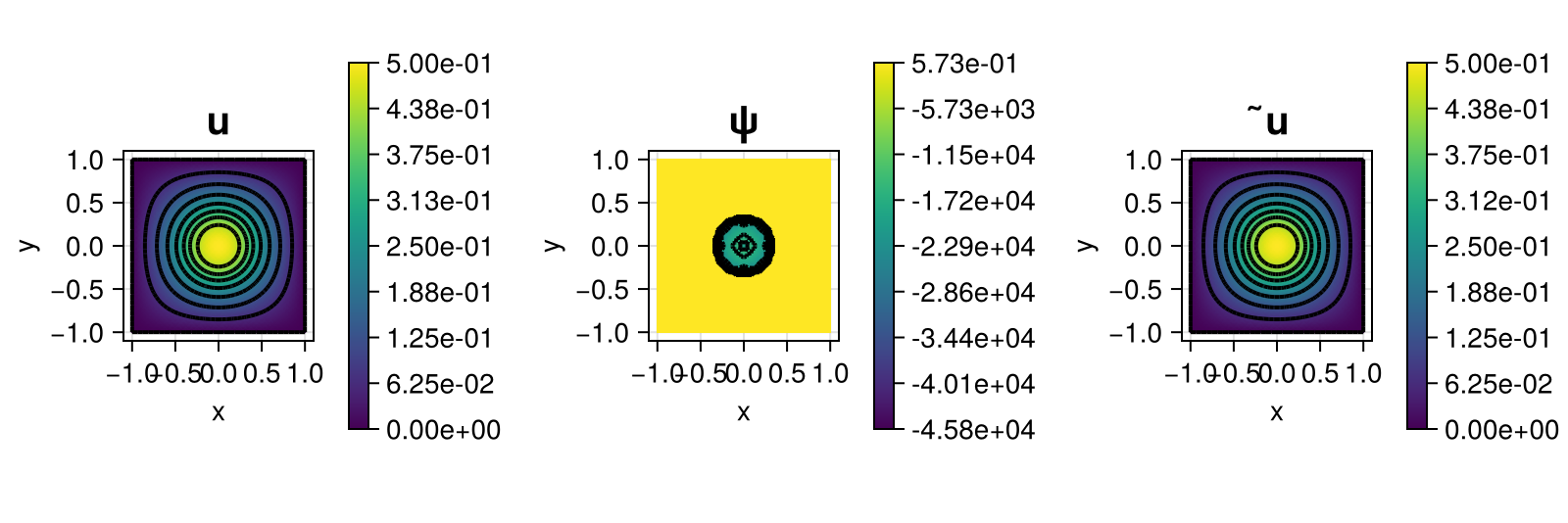

    plt = plot([id(u), id(ψ), id(u2)], sol; Plotter = Plotter, ncols = 3)

    return sol, plt
end

end # module

This page was generated using Literate.jl.
